Carrier Tape Reel Series

Take-up reels compliant with EIA-481, available in antistatic material.

PLASTIC PICK-UP REEL (Dia, 15″)

15-Inch (380mm) Antistatic HIPS Carrier Tape Reel – EIA-481

High-capacity 15" (380mm) HIPS plastic take-up reel for high-volume SMT lines, reducing reel changeovers by 40%. Available in 8mm–56mm widths, antistatic or conductive.

Inquiry

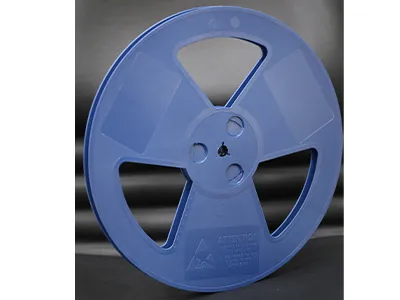

PLASTIC PICK-UP REEL (Dia, 13″)

13-Inch (330mm) Standard SMT Take-Up Reel (8mm–56mm Widths)

Industry-standard 13" (330mm) EIA-481 plastic reel with precision flange flatness and smooth hub rotation for automated taping machines and pick-and-place feeders.

Inquiry

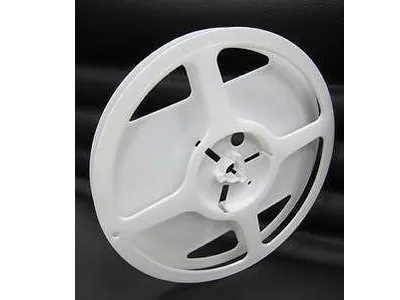

PLASTIC PICK-UP REEL (Dia, 7″)

7-Inch (178mm) Precision SMD Take-Up Reel (0201–SOP Packaging)

Compact 7" (178mm) polystyrene/ABS reel for passive components (0201/0402/0603), small ICs, and sample/engineering lots. Custom hub diameters and ESD grades available.

Inquiry

EIA-481 Plastic Take-Up Reel Dimensions & Specifications

Precision injection-molded reels with high flange flatness and concentric hub design for jam-free operation on high-speed SMT feeders.

Reel Size Outer Dia. A (mm) Hub Dia. N (mm) Arbor Hole C (mm) Matched Tape Widths (W) Material & ESD Options Typical Applications
7-Inch (7") 178 ± 2.0 mm 60 / 80 mm 13.0 ± 0.5 mm 8 / 12 / 16 mm PS / ABS (White, Blue, Black; Antistatic or Conductive) 0201/0402/0603 passives, SOT, small-lot & engineering reels
13-Inch (13") 330 ± 2.0 mm 100 ± 1.5 mm 13.0 ± 0.5 mm 8 / 12 / 16 / 24 / 32 / 44 / 56 mm High-Impact HIPS (Antistatic 10⁸–10¹¹ Ω / Conductive 10⁴–10⁶ Ω) ICs, SOP, QFN, connectors; industry-standard mass production reel
15-Inch (15") 380 ± 2.0 mm 100 / 150 mm 13.0 ± 0.5 mm 12 / 16 / 24 / 32 / 44 / 56 mm Heavy-Duty HIPS (Antistatic / Conductive Black) Deep-pocket connectors & transformers; cuts SMT line reel changeovers by 40%
* Custom options: custom hub diameter, reinforced flange ribs, molded customer logo, and barcode label recess area. Get Reel Quote & Spec Matching
