Cover Tape Series

Stable peel force and high transparency ensure perfect sealing.

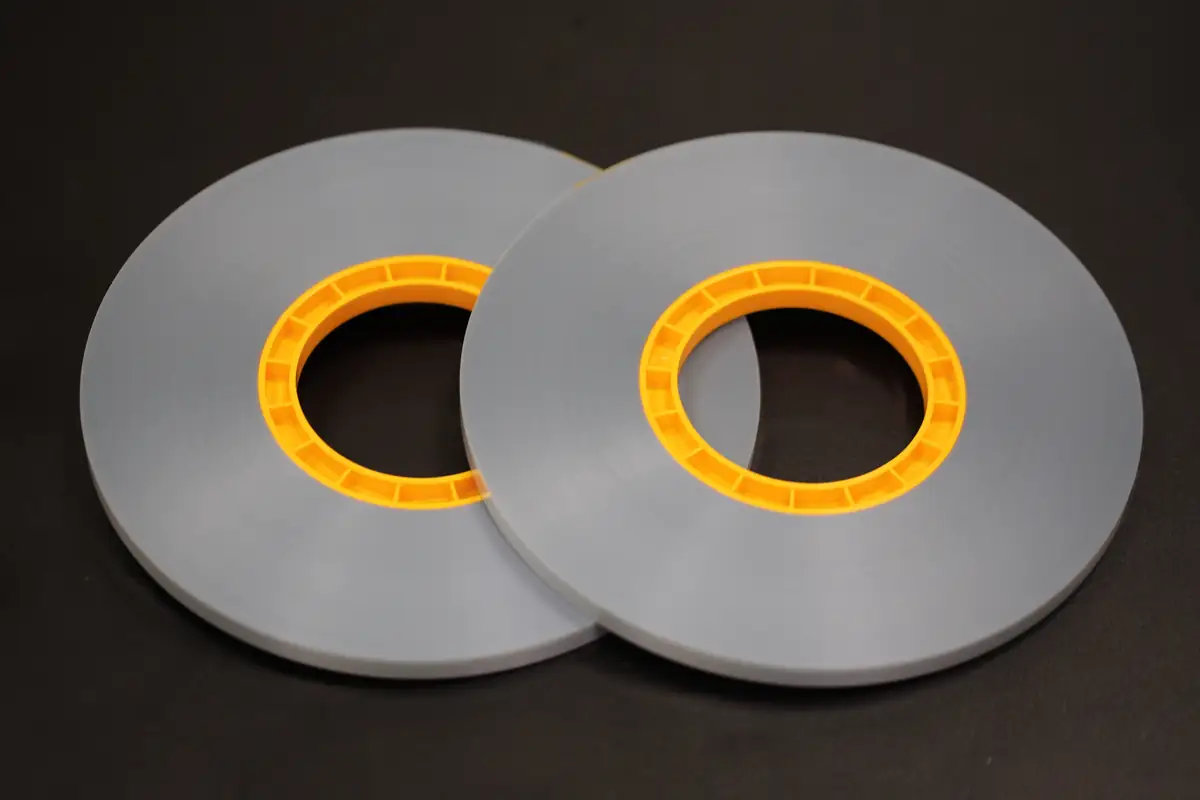

Heat-Activated Cover Tape KM10

KM10 Static-Dissipative Heat-Activated Cover Tape (For PC Carrier)

Heat-seal cover tape formulated specifically for polycarbonate (PC) carrier tapes. Delivers smooth, consistent peel strength (20–70gf) under EIA-481 standards without adhesive transfer.

Inquiry

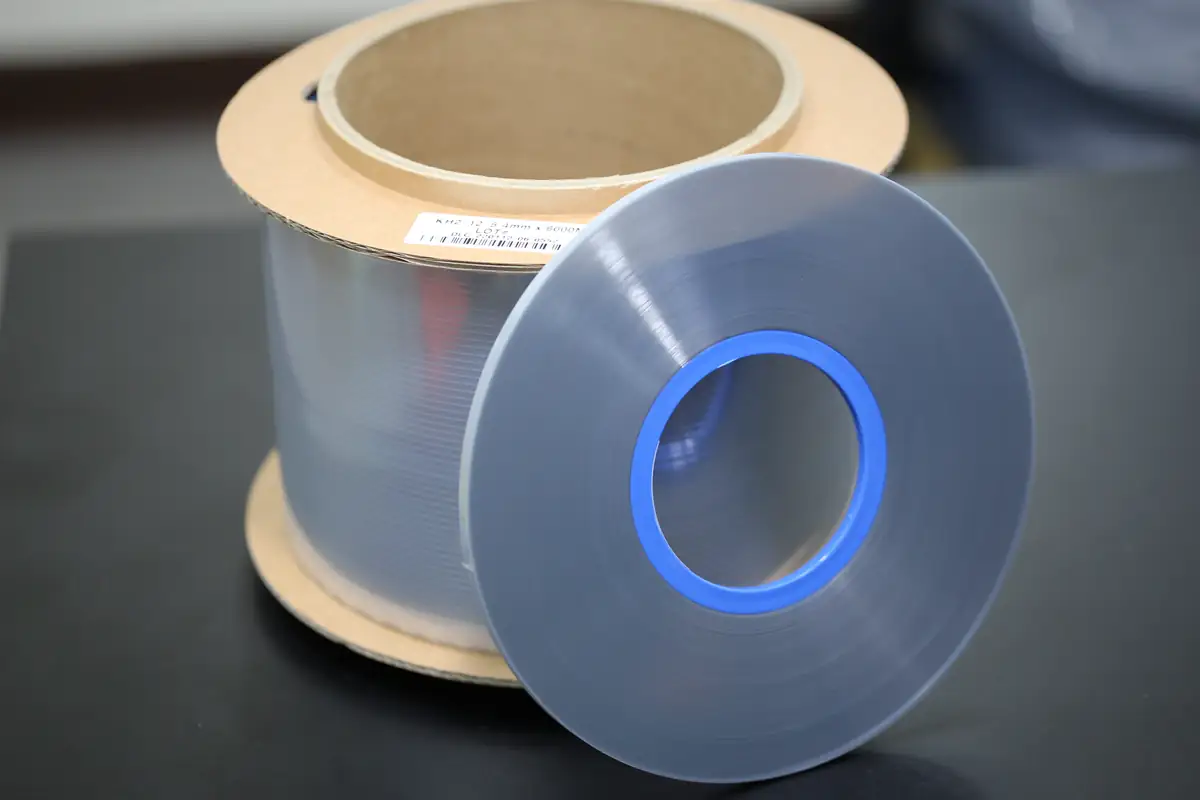

Heat-Activated Cover Tape KH20

KH20 Heat-Activated Cover Tape (PC & PS Conductive Sealing)

High-stability heat-activated cover tape (HAA) for conductive PC and PS carrier tapes. Wide sealing temperature window (160–210°C) and anti-static surface layer (10⁸–10¹⁰ Ω).

Inquiry

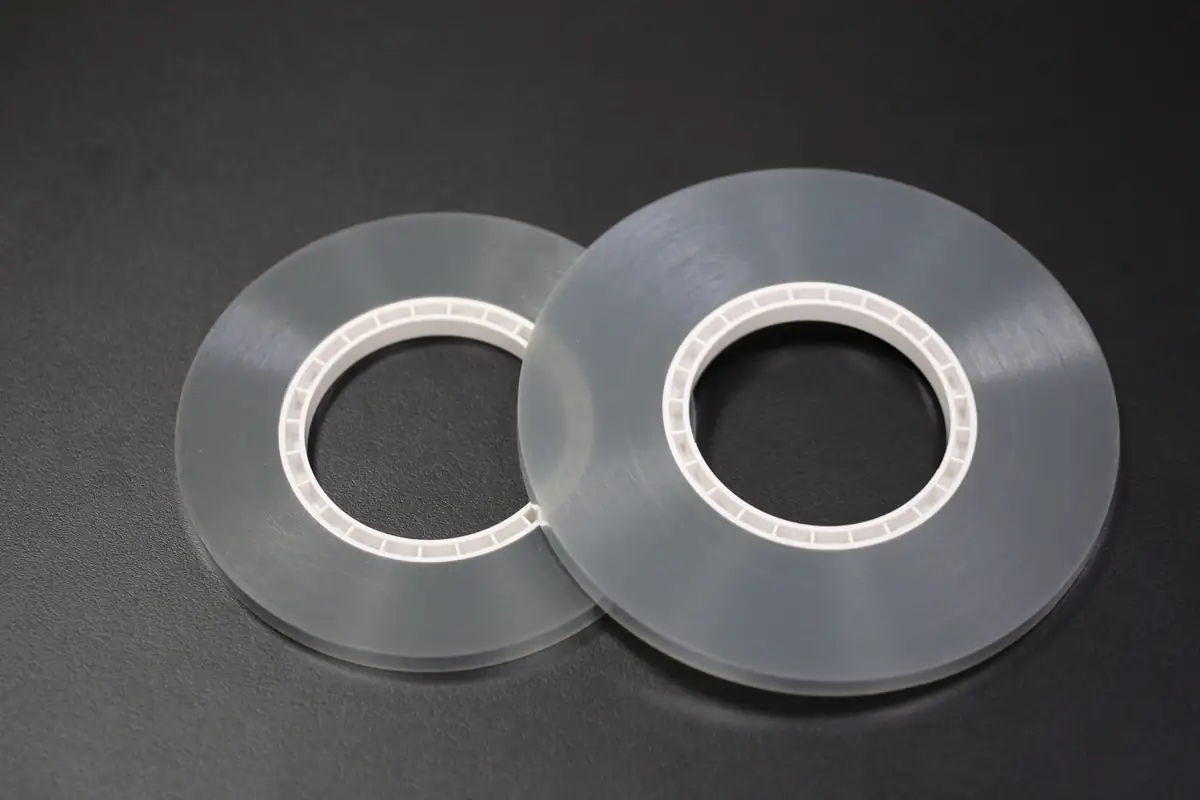

Antistatic PSA Cover Tape KI20

KI20 Antistatic PSA Self-Adhesive Cover Tape (No Heat Required)

Pressure-sensitive adhesive (PSA) antistatic cover tape compatible with both PS and PC carrier tapes. Seals via pressure roller at room temperature—ideal for heat-sensitive crystals, MEMS, and batteries.

Inquiry

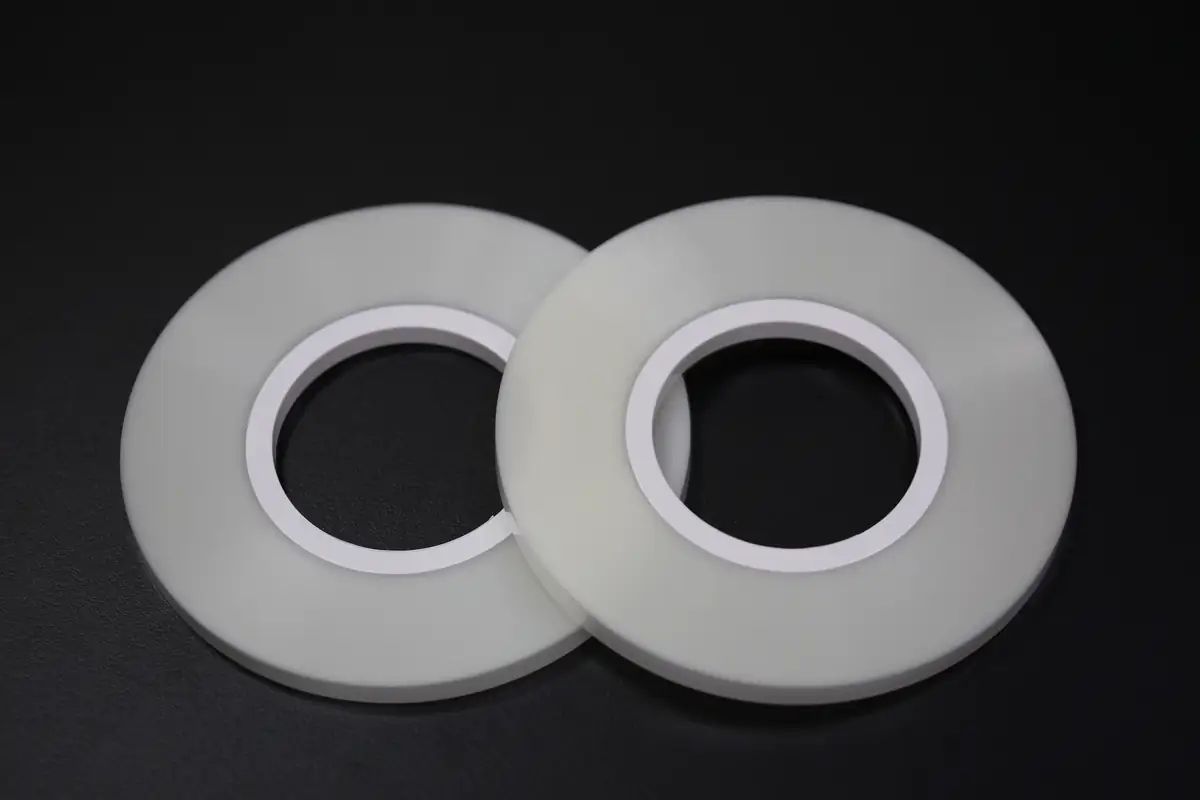

Heat-Activated Cover Tape KI10

KI10 High-Clarity Antistatic Heat-Activated Cover Tape

High optical transmittance (>85%) antistatic heat-activated cover tape allowing post-taping AOI vision inspection of component marking and orientation.

Inquiry

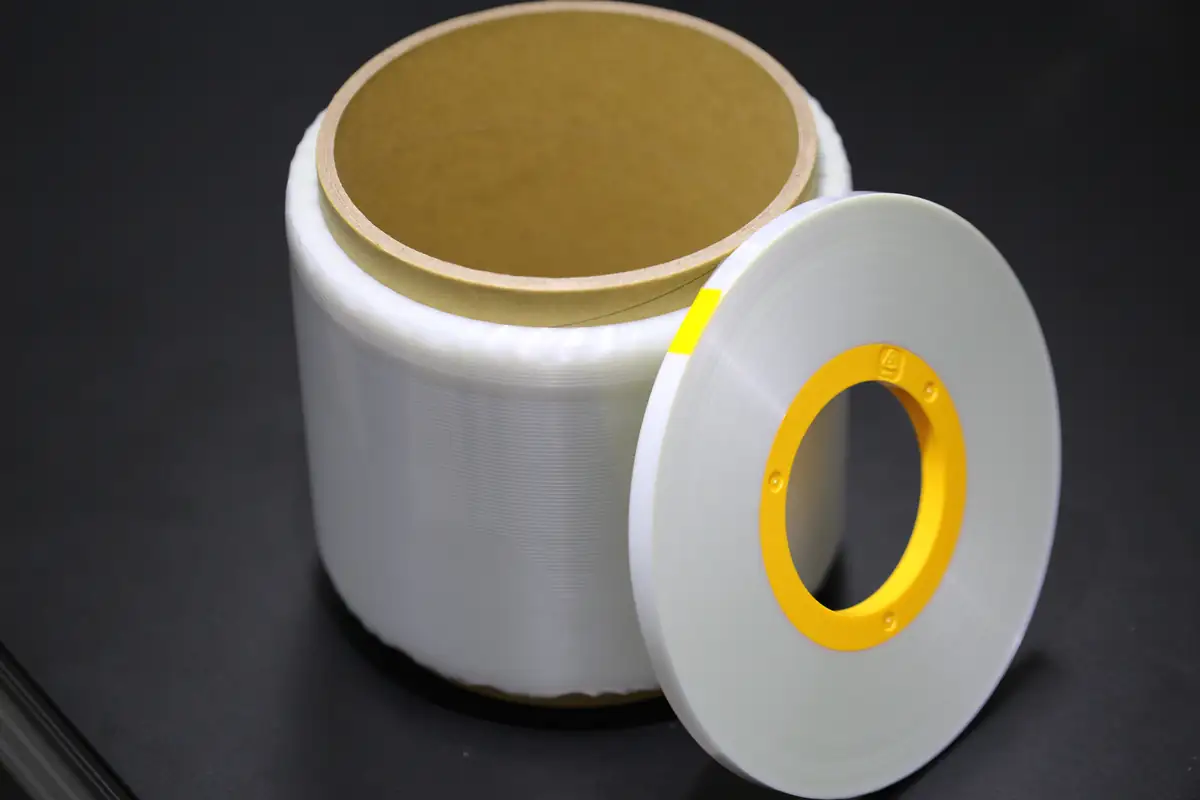

Heat-Activated Cover Tape K210

K210 High-Speed SMT Static-Dissipative Heat-Seal Cover Tape

Tear-resistant PET base film with static-dissipative coating. Engineered for ultra-high-speed SMT feeders with minimal peel force fluctuation (±10gf) after aging.

Inquiry

Cover Tape Technical Specifications & Peel Force Guide

Heat-Activated (HAA) and Pressure-Sensitive Adhesive (PSA) cover tapes engineered for stable EIA-481 peel force (20–70gf) without adhesive residue or tape tearing.

Model Code Sealing Type Compatible Carrier Surface Resistivity Peel Force (EIA-481) Sealing Temp Window Standard Widths (mm) / Roll Length
KM10 Heat-Activated (HAA) PC Conductive & Clear 10⁶ – 10⁹ Ω (Dissipative) 20 – 60 gf (±10gf) 165 – 205 °C 5.3 / 9.3 / 13.3 / 21.3 / 25.5 / 37.5 mm · 300m / 500m
KH20 Heat-Activated (HAA) Universal PC & PS Carrier 10⁸ – 10¹⁰ Ω (Antistatic) 25 – 70 gf (±10gf) 160 – 210 °C 5.3 / 9.3 / 13.3 / 21.3 / 25.5 / 37.5 / 49.5 mm · 300m / 500m
KI20 (PSA) Pressure-Sensitive (No Heat) PS / PC / PET / PP 10⁸ – 10¹⁰ Ω (Antistatic) 20 – 65 gf (±10gf) Room Temp Pressure Roller 5.3 / 9.3 / 13.3 / 21.3 / 25.5 / 37.5 / 49.5 mm · 200m / 300m
KI10 High-Clarity Heat-Seal (HAA) PC & PS Carrier 10⁸ – 10¹¹ Ω (Antistatic) 20 – 60 gf (±10gf) 165 – 200 °C 5.3 – 37.5 mm (>85% optical transmittance for post-seal AOI)
K210 High-Speed SMT Heat-Seal PC Carrier (0201/0402/0603) 10⁶ – 10⁹ Ω (Dissipative) 20 – 55 gf (Low aging drift) 160 – 200 °C 5.3 / 9.3 mm · 400m / 500m / 600m long-length rolls
* EIA-481 Width Matching: 8mm carrier → 5.3mm cover · 12mm → 9.3mm · 16mm → 13.3mm · 24mm → 21.3mm · 32mm → 25.5mm · 44mm → 37.5mm · 56mm → 49.5mm. Get Cover Tape Matching & Quote
