Carrier Tape Series

Precision molding technology provides stable protection for automated production.

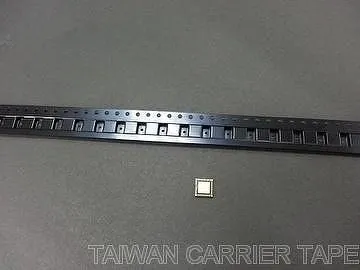

1201 PC Conductive Carrier Tape – 12

1201 PC Conductive Carrier Tape (8–12mm | 0201/0402/0603 SMD)

Carbon-filled polycarbonate (PC) conductive carrier tape (10⁴–10⁶ Ω). ±0.03mm pocket tolerance for high-speed SMT pick-and-place of 0201, 0402, 0603 chip resistors, MLCCs, and miniature diodes.

Inquiry

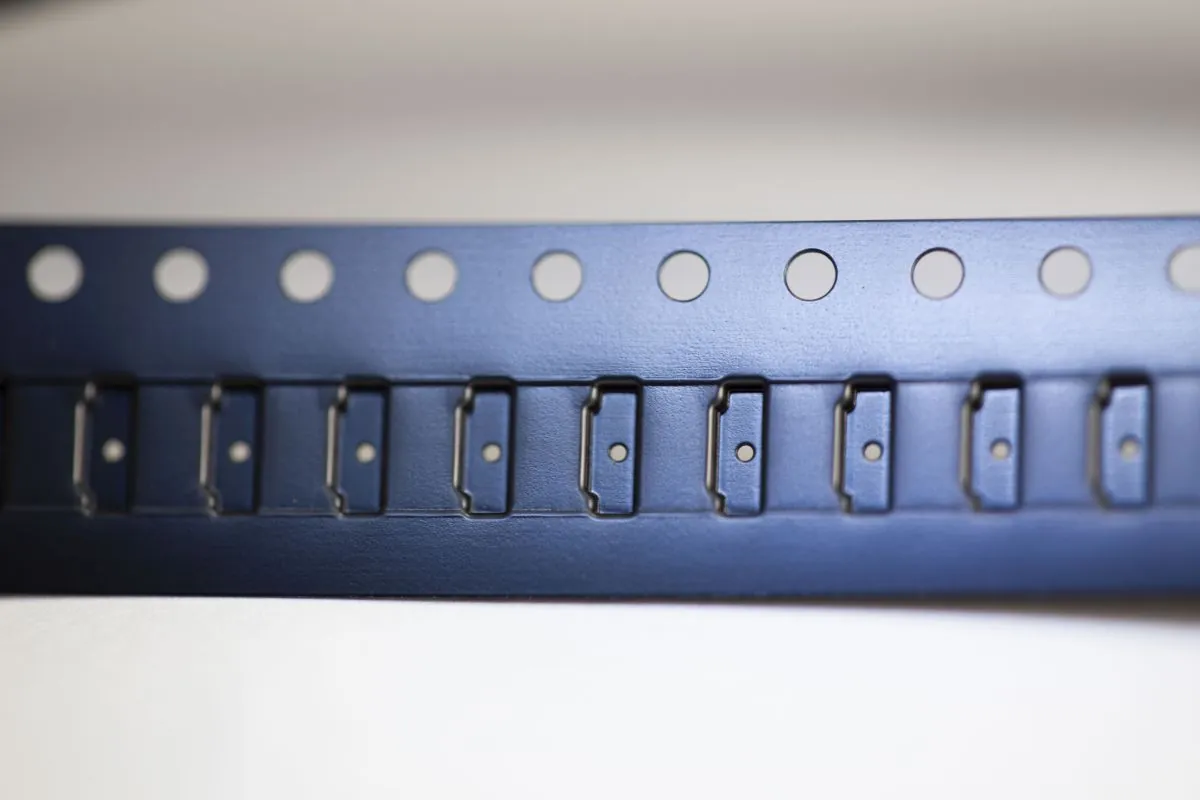

1201 PC Conductive Carrier Tape – 11

1201 PC Conductive Carrier Tape (12–24mm | SOT/SOP/SMA/SMB)

High-rigidity conductive PC carrier tape preventing crush and ESD damage. Precision formed pockets for SOT-23, SOT-89, SOP-8, SOIC, SMA, SMB, and power discrete packages.

Inquiry

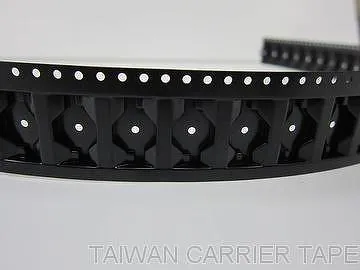

1201 PC Conductive Carrier Tape – 10

1201 PC Conductive Carrier Tape (QFN/BGA/LGA IC Protection)

Engineered for ESD-sensitive QFN, DFN, BGA, and LGA integrated circuits. Stable surface resistivity (10⁴–10⁶ Ω), burr-free edges, and flat pocket floor to prevent component tilting.

Inquiry
1201 PC Conductive Carrier Tape – 9

1201 PC Conductive Carrier Tape (Fine-Pitch & Micro-IC Series)

Low-warpage carbon PC formula with laser traceability support. Designed for fine-pitch ICs, crystal oscillators, and RF filters requiring strict pocket Ao/Bo/Ko stability.

Inquiry

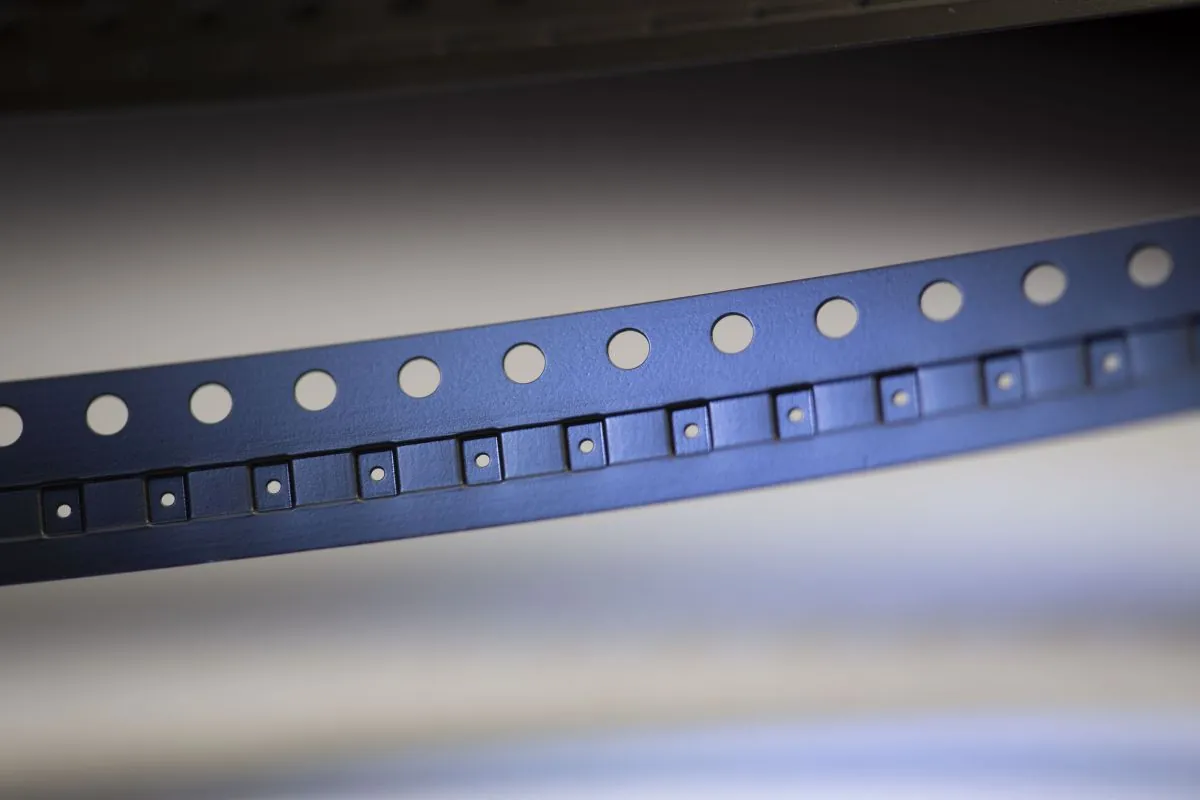

1201 PC Conductive Carrier Tape – 5

1201 PC Conductive Carrier Tape (High-Speed Feeder Grounding)

Provides a continuous static-dissipative grounding path on high-speed SMT feeders. Prevents triboelectric charge build-up and component jumping during cover tape peeling.

Inquiry
1201 PC Conductive Carrier Tape – Overview

1201 PC Conductive Carrier Tape – Full EIA-481 Spec Overview

EIA-481 compliant conductive PC carrier tape across 8mm, 12mm, 16mm, 24mm, 32mm, and 44mm widths. Custom tooling in 5–7 days with AOI 100% visual inspection.

Inquiry

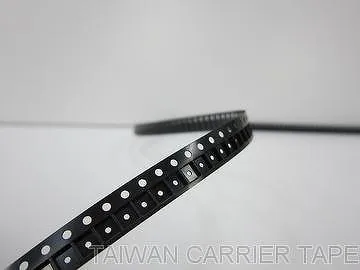

1201 PC Conductive Carrier Tape – 1

1201 PC Conductive Carrier Tape (Automotive & High-Reliability)

High-temperature resistant PC conductive tape for automotive-grade (AEC-Q) ICs, sensors, and optoelectronics requiring zero carbon sloughing and stable peel force.

Inquiry

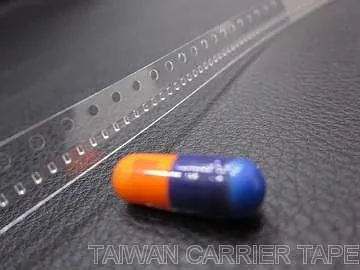

1101 PC Non-Antistatic Transparent

1101 PC Transparent Carrier Tape (250+ EIA-481 Standard Molds)

High-clarity non-antistatic polycarbonate (PC) carrier tape enabling direct in-pocket optical inspection. Over 250 ready-to-ship standard molds for LEDs, switches, and passives.

Inquiry

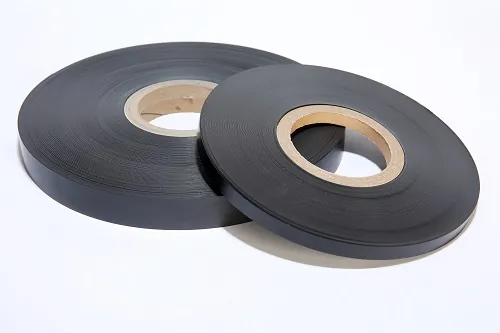

1801 PC Conductive Black Sheet

1801 PC Conductive Black Carrier Sheet (8mm–56mm Raw Material)

Extruded carbon-conductive polycarbonate sheet roll for rotary and flatbed carrier tape forming. Uniform thickness and stable 10⁴–10⁶ Ω surface resistance across 8mm to 56mm widths.

Inquiry
1901 PC Static-Dissipative

1901 PC Static-Dissipative Carrier Tape (10⁶–10⁹ Ω SMT Series)

Controlled static-dissipative polycarbonate carrier tape (10⁶–10⁹ Ω) for gradual charge decay without rapid spark discharge, ideal for sensitive MEMS and optical sensors.

Inquiry

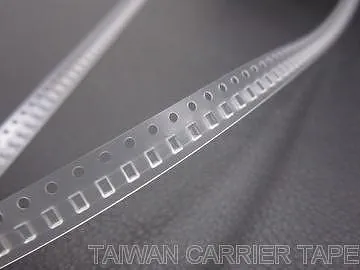

1601 PP Coating Tape

1601 PP Transparent Punched/Formed Carrier Tape (Chip Inductors)

Polypropylene (PP) precision cavity carrier tape designed for miniature chip inductors, beads, and thick-film passives with clean pocket release.

Inquiry

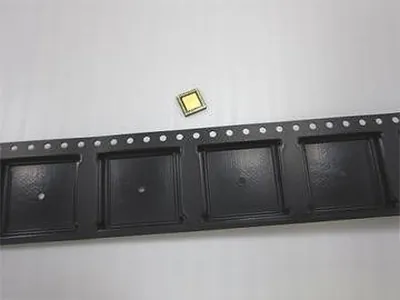

2201 PS Big Pocket Series

2201 PS Conductive Deep-Pocket Carrier Tape (16–56mm Connectors)

Carbon polystyrene (PS) conductive carrier tape engineered for deep-pocket and wide-format components (16mm, 24mm, 32mm, 44mm, 56mm): board-to-board connectors, transformers, relays, and shielding cans.

Inquiry

Carrier Tape Technical Specifications (ANSI/EIA-481-D)

All series comply with ANSI/EIA-481-D standards with ±0.03mm pocket forming precision and 100% automated AOI optical inspection.

Model Code Base Material ESD Grade / Surface Resistivity Standard Widths (W) Thickness (T) Pocket Tolerance Typical SMD Applications
1201 PC Conductive Polycarbonate (PC) Conductive 10⁴–10⁶ Ω 8 / 12 / 16 / 24 / 32 / 44 mm 0.20 – 0.40 mm ±0.03 mm 0201/0402/0603 passives, SOT, SOP, QFN, DFN, BGA, Crystals
1901 PC Static-Dissipative PC Dissipative 10⁶–10⁹ Ω 8 / 12 / 16 / 24 / 32 mm 0.20 – 0.35 mm ±0.03 mm MEMS sensors, optical modules, ultra-sensitive RF ICs
1101 PC High-Clarity Transparent PC Insulative / Optional Antistatic 8 / 12 / 16 / 24 mm 0.20 – 0.35 mm ±0.03 mm LEDs, tactile switches, in-pocket AOI inspection (250+ standard molds)
1601 PP Polypropylene (PP) Insulative / Antistatic 10⁹–10¹¹ Ω 8 / 12 mm 0.22 – 0.35 mm ±0.03 mm Multilayer chip inductors, ferrite beads, thick-film passives
2201 PS Conductive Polystyrene (PS) Conductive 10⁴–10⁶ Ω 16 / 24 / 32 / 44 / 56 mm 0.30 – 0.60 mm ±0.05 mm Board-to-board & automotive connectors, LAN transformers, relays, shielding cans
1801 PC Conductive Black PC Sheet Roll Conductive 10⁴–10⁶ Ω 8 – 56 mm custom slitting 0.18 – 0.45 mm ±0.015 mm thickness Raw extruded sheet rolls for rotary & flatbed carrier tape forming machines
* Custom pocket design: 2D CAD drawing (Ao / Bo / Ko) within 24 hours from your component datasheet or STEP file; custom mold tooling in 5–7 days. Get 24h Custom Spec & Quote
